Sheaves US Standard

Categories : Belt Drive ,Sheaves US Standard

Description
Parameter

Sheaves US standard

Type: AK,BK,A,B,C,D,3V,5V,8V

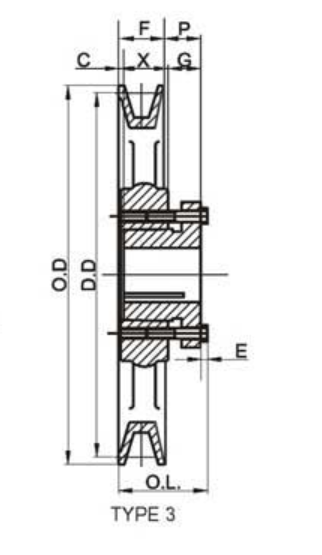

Sheaves US Standard

8V4-Groove F=4 7/85-Groove F=66-Groove F=7 1/88-Groove F=9 3/8

SIZE	OD	PD	TL bush No.
4-8V-1250F	12.5’’	12.3’’	F
4-8V-1320F	13.2’’	13.0’’	F
4-8V-1400F	14.0’’	13.8’’	F
4-8V-1500F	15.0’’	14.8’’	F
4-8V-1600F	16.0’’	15.8’’	F
4-8V-1700F	17.0’’	16.8’’	F
4-8V-1800F	18.0’’	17.8’’	F
4-8V-1900F	19.0’’	18.8’’	F
4-8V-2000F	20.0’’	19.8’’	J
4-8V-2120F	21.2’’	21.0’’	J
4-8V-2240F	22.4’’	22.2’’	J
4-8V-2480F	24.8’’	24.6’’	M
4-8V-3000F	30.0’’	29.8’’	M
4-8V-3550F	35.5’’	35.3’’	M
4-8V-4000F	40.0’’	39.8’’	M

Below part of the data for reference, pls note it’s not completely shown,for details catalogue pls send email to info@cworlddrive.comNon-standard/special designed sheaves/pulleys can be supplied too.
