Precise alignment of belt driven machinery is essential to reduce both pulley and belt wear. It can help reduce machinery vibration, which in turn leads to improved machine performance. Good pulley alignment can help reduce unscheduled downtime, and can improve the reliability of equipment. The Belt Alignment Tool MS-CNT20 offer an easy and accurate method to adjust the machinery so that pulleys are accurately aligned.
Belt alignment tool

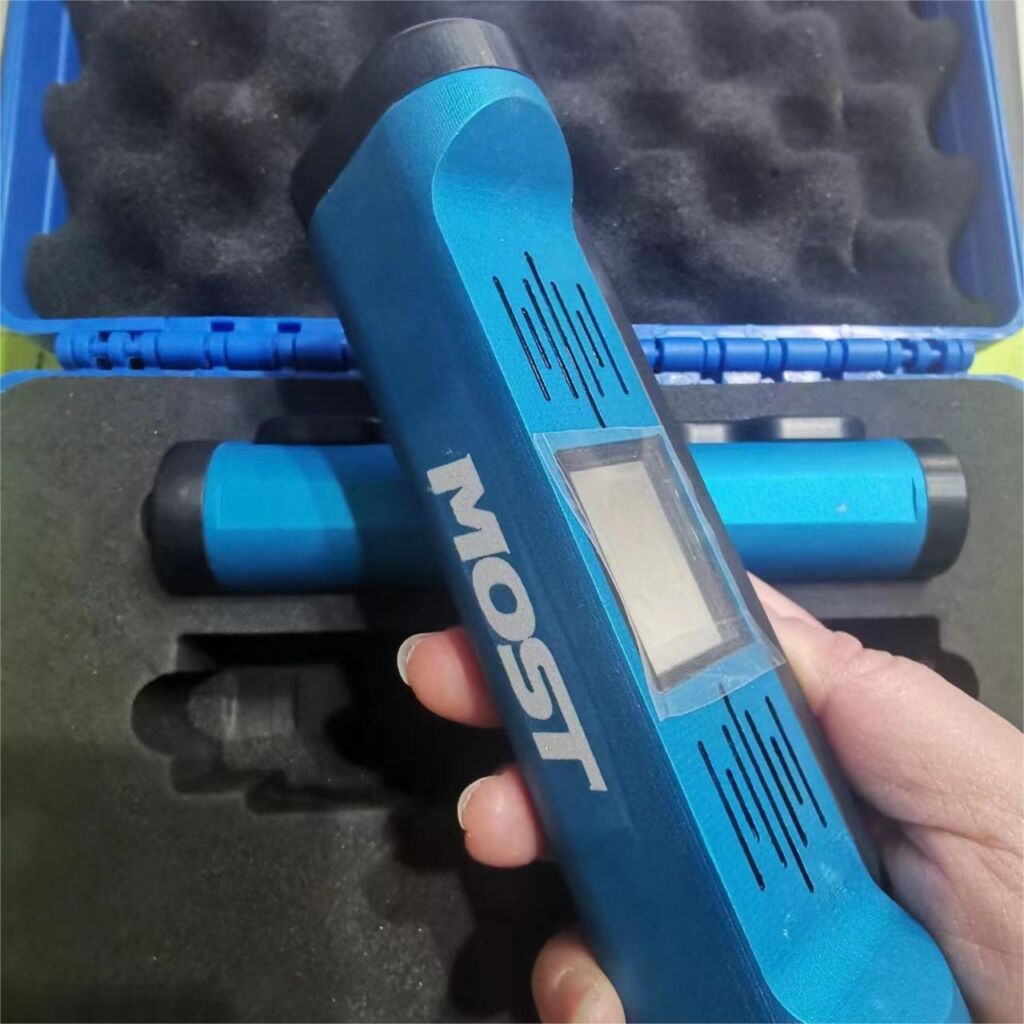

The MS-CNT20 consists of two units that attach magnetically to the side of each pulley. The transmitter unit emits laser lines that is projected onto the reflector unit. The reflector unit has a target area with a central reference line. The laser line is then reflected to the transmitter unit for a reading on the second target area, greatly increasing the accuracy. Depending on the position and orientation of the laser line projected on the target area, it is possible to determine the type of misalignment and how to correct it. Belt alignment is easily performed by adjusting the moveable machine(s) until the laser lines coincide with the reference lines on both units.
